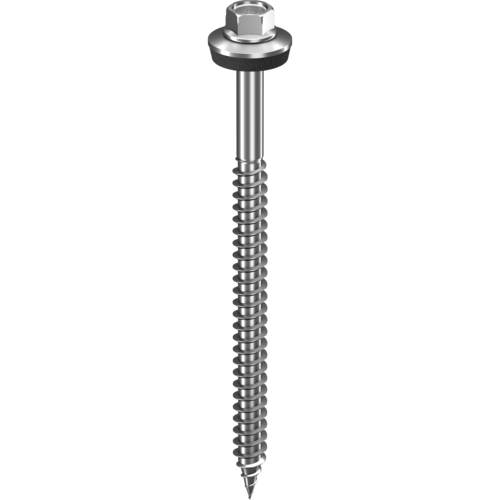

Samovrtný šroub EJOFAST® JF3-Plus-6,8
Podrobnosti k výrobku
-
Oblast použití
Upevnění ocelových a hliníkových plechů a sendvičových panelů na dřevěné nosné kosntrukce
-
Vlastnosti
- Nerez A2 s kalenou ocelovou vrtací špičkou
- Těsnící podložka z nerezu
- Těsnící podložka předmontovaná
- Šroubování redukující výskyt špon
- Montáž bez předvrtání
- Bez smýkání špičky po povrchu
- Vysoká únosnost
-
Technické údaje
- Průměr: 6,8 mm
- Hlava: šestihran SW8
- Otáčky šroubování: max. 1500 1/min
- Vrtací kapacita: tI + tII: 0,88 mm
Filtr
Selected filters
| Označení výrobku | Číslo výrobku | délka závitu mm | Průměr šroubu mm | délka mm | Balení |
|---|---|---|---|---|---|
| JF3-plus-6,8X 40 E16 | 3594067393 | 40.0 | 6.8 | 40.0 | 250 |
Specifications
|
|||||
| JF3-plus-6,8X 40 E16 VE100 | 6594067393 | 40.0 | 6.8 | 40.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x60 E16 | 3594167393 | 60.0 | 6.8 | 60.0 | 250 |
Specifications
|
|||||
| JF3-Plus-6,8x60 E16 VE100 | 6594167393 | 60.0 | 6.8 | 60.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x80 E16 | 3594267393 | 75.0 | 6.8 | 80.0 | 250 |
Specifications
|
|||||
| JF3-Plus-6,8x80 E16 VE100 | 6594267393 | 75.0 | 6.8 | 80.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x100 E16 | 3594367393 | 75.0 | 6.8 | 100.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x120 E16 | 3594467393 | 75.0 | 6.8 | 120.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x140 E16 | 3594567393 | 75.0 | 6.8 | 140.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x160 E16 | 3594667393 | 75.0 | 6.8 | 160.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x180 E16 | 3594767393 | 75.0 | 6.8 | 180.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x200 E16 | 3594867393 | 75.0 | 6.8 | 200.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x220 E16 | 3594967393 | 75.0 | 6.8 | 220.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x240 E16 | 3595067393 | 75.0 | 6.8 | 240.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x260 E16 | 3595167393 | 75.0 | 6.8 | 260.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x280 E16 | 3595267393 | 75.0 | 6.8 | 280.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x300 E16 | 3595367393 | 75.0 | 6.8 | 300.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8X 40 E19 | 3594066393 | 40.0 | 6.8 | 40.0 | 250 |
Specifications
|
|||||
| JF3-Plus-6,8x60 E19 | 3594166393 | 60.0 | 6.8 | 60.0 | 250 |
Specifications
|
|||||
| JF3-Plus-6,8x80 E19 | 3594266393 | 75.0 | 6.8 | 80.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x100 E19 | 3594366393 | 75.0 | 6.8 | 100.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x120 E19 | 3594466393 | 75.0 | 6.8 | 120.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x140 E19 | 3594566393 | 75.0 | 6.8 | 140.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x160 E19 | 3594666393 | 75.0 | 6.8 | 160.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x180 E19 | 3594766393 | 75.0 | 6.8 | 180.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x200 E19 | 3594866393 | 75.0 | 6.8 | 200.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x220 E19 | 3594966393 | 75.0 | 6.8 | 220.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x240 E19 | 3595066393 | 75.0 | 6.8 | 240.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x260 E19 | 3595166393 | 75.0 | 6.8 | 260.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x280 E19 | 3595266393 | 75.0 | 6.8 | 280.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x300 E19 | 3595366393 | 75.0 | 6.8 | 300.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8X 40 E22 | 3594013393 | 40.0 | 6.8 | 40.0 | |
Specifications
|
|||||
| JF3-Plus-6,8x60 E22 | 3594113393 | 60.0 | 6.8 | 60.0 | 250 |
Specifications
|
|||||
| JF3-Plus-6,8x80 E22 | 3594213393 | 75.0 | 6.8 | 80.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x100 E22 | 3594313393 | 75.0 | 6.8 | 100.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x120 E22 | 3594413393 | 75.0 | 6.8 | 120.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x140 E22 | 3594513393 | 75.0 | 6.8 | 140.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x160 E22 | 3594613393 | 75.0 | 6.8 | 160.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x180 E22 | 3594713393 | 75.0 | 6.8 | 180.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x200 E22 | 3594813393 | 75.0 | 6.8 | 200.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x220 E22 | 3594913393 | 75.0 | 6.8 | 220.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x240 E22 | 3595013393 | 75.0 | 6.8 | 240.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x260 E22 | 3595113393 | 75.0 | 6.8 | 260.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x280 E22 | 3595213393 | 75.0 | 6.8 | 280.0 | 100 |
Specifications
|
|||||
| JF3-Plus-6,8x300 E22 | 3595313393 | 75.0 | 6.8 | 300.0 | 100 |
Specifications
|
