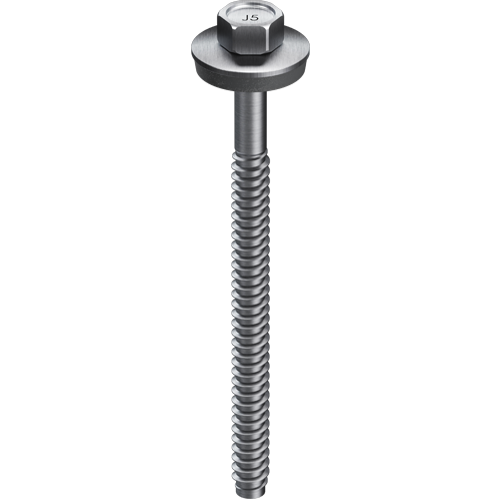

EJOT® závitotvorný šroub JZ5-6,3
Podrobnosti k výrobku
-
Oblast použití
- Upevnění ocelových profilovaných plechů a sendvičových panelů a ocelové nosné konstrukce do S 355 (ST 52)
- Pro nosné konstrukce z vysokopevnostních ocelí
-
Vlastnosti
- Nerez A2 s náběhem z kalené uhlíkové oceli
- Těsnící podložka z nerezu
- Těsnící podložka předmontovaná
-
Technické údaje
- Průměr šroubu: 6,3
Filtr
Selected filters
| Označení výrobku | Číslo výrobku | těsnící podložka | Průměr šroubu mm | délka mm | Balení |
|---|---|---|---|---|---|
| JZ5-6.3x20 E16 | 3191011311 | 16 | 6.3 | 20.0 | 500 |
Specifications
|
|||||
| JZ5-6.3x25 E16 | 3191111311 | 16 | 6.3 | 25.0 | 500 |
Specifications
|
|||||
| JZ5-6.3x30 E16 | 3191211311 | 16 | 6.3 | 30.0 | 500 |
Specifications
|
|||||
| JZ5-6.3x40 E16 | 3191311311 | 16 | 6.3 | 40.0 | 250 |
Specifications
|
|||||
| JZ5-6.3x53 E16 | 3191411311 | 16 | 6.3 | 53.0 | 250 |
Specifications
|
|||||
| JZ5-6.3x63 E16 | 3191511311 | 16 | 6.3 | 63.0 | 250 |
Specifications
|
|||||
| JZ5-6.3x83 E16 | 3191611311 | 16 | 6.3 | 83.0 | 250 |
Specifications
|
|||||
| JZ5-6.3x93 E16 | 3191711311 | 16 | 6.3 | 93.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x103 E16 | 3191811311 | 16 | 6.3 | 103.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x113 E16 | 3191911311 | 16 | 6.3 | 113.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x123 E16 | 3192011311 | 16 | 6.3 | 123.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x133 E16 | 3192111311 | 16 | 6.3 | 133.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x143 E16 | 3192211311 | 16 | 6.3 | 143.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x153 E16 | 3192311311 | 16 | 6.3 | 153.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x163 E16 | 3192411311 | 16 | 6.3 | 163.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x183 E16 | 3192511311 | 16 | 6.3 | 183.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x203 E16 | 3192611311 | 16 | 6.3 | 203.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x223 E16 | 3192711311 | 16 | 6.3 | 223.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x243 E16 | 3192811311 | 16 | 6.3 | 243.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x263 E16 | 3192911311 | 16 | 6.3 | 263.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x20 E19 | 3191066311 | 19 | 6.3 | 20.0 | 500 |
Specifications
|
|||||
| JZ5-6.3x25 E19 | 3191166311 | 19 | 6.3 | 25.0 | 500 |
Specifications
|
|||||
| JZ5-6.3x30 E19 | 3191266311 | 19 | 6.3 | 30.0 | 500 |
Specifications
|
|||||
| JZ5-6.3x40 E19 | 3191366311 | 19 | 6.3 | 40.0 | 250 |
Specifications
|
|||||
| JZ5-6.3x53 E19 | 3191466311 | 19 | 6.3 | 53.0 | 250 |
Specifications
|
|||||
| JZ5-6.3x63 E19 | 3191566311 | 19 | 6.3 | 63.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x83 E19 | 3191666311 | 19 | 6.3 | 83.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x93 E19 | 3191766311 | 19 | 6.3 | 93.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x103 E19 | 3191866311 | 19 | 6.3 | 103.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x113 E19 | 3191966311 | 19 | 6.3 | 113.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x123 E19 | 3192066311 | 19 | 6.3 | 123.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x133 E19 | 3192166311 | 19 | 6.3 | 133.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x143 E19 | 3192266311 | 19 | 6.3 | 143.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x153 E19 | 3192366311 | 19 | 6.3 | 153.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x163 E19 | 3192466311 | 19 | 6.3 | 163.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x183 E19 | 3192566311 | 19 | 6.3 | 183.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x203 E19 | 3192666311 | 19 | 6.3 | 203.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x223 E19 | 3192766311 | 19 | 6.3 | 223.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x243 E19 | 3192866311 | 19 | 6.3 | 243.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x263 E19 | 3192966311 | 19 | 6.3 | 263.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x20 E22 | 3191013311 | 22 | 6.3 | 20.0 | 500 |
Specifications
|
|||||
| JZ5-6.3x25 E22 | 3191113311 | 22 | 6.3 | 25.0 | 500 |
Specifications
|
|||||
| JZ5-6.3x30 E22 | 3191213311 | 22 | 6.3 | 30.0 | 500 |
Specifications
|
|||||
| JZ5-6.3x40 E22 | 3191313311 | 22 | 6.3 | 40.0 | 250 |
Specifications
|
|||||
| JZ5-6.3x53 E22 | 3191413311 | 22 | 6.3 | 53.0 | 250 |
Specifications
|
|||||
| JZ5-6.3x63 E22 | 3191513311 | 22 | 6.3 | 63.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x83 E22 | 3191613311 | 22 | 6.3 | 83.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x93 E22 | 3191713311 | 22 | 6.3 | 93.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x103 E22 | 3191813311 | 22 | 6.3 | 103.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x113 E22 | 3191913311 | 22 | 6.3 | 113.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x123 E22 | 3192013311 | 22 | 6.3 | 123.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x133 E22 | 3192113311 | 22 | 6.3 | 133.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x143 E22 | 3192213311 | 22 | 6.3 | 143.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x153 E22 | 3192313311 | 22 | 6.3 | 153.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x163 E22 | 3192413311 | 22 | 6.3 | 163.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x183 E22 | 3192513311 | 22 | 6.3 | 183.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x203 E22 | 3192613311 | 22 | 6.3 | 203.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x223 E22 | 3192713311 | 22 | 6.3 | 223.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x243 E22 | 3192813311 | 22 | 6.3 | 243.0 | 100 |
Specifications
|
|||||
| JZ5-6.3x263 E22 | 3192913311 | 22 | 6.3 | 263.0 | 100 |
Specifications
|
