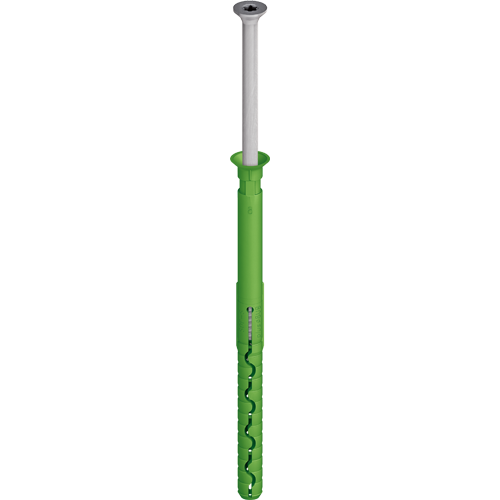

EJOT® SDF-S plus 8UB


Podrobnosti k výrobku
-
Oblast použití
Brick slip system anchor for concrete and masonry
- For concrete, solid and perforated masonry
- Anchor tube with small countersunk head for unobtrusive installation in the joint
-
Vlastnosti
- Approved for concrete, solid and perforated masonry (A, B, C, D)
- Anchor tube with small countersunk head for unobtrusive installation in the joint
- Torsion-proof anchor tube
- Universal expansion zone for safe anchoring
- High loads
- Anchor with increased bending moment
- Premounted screw for quick installation
- German DIBt approval: Z-21.2-589
-
Technické údaje
- Anchor diameter: 8 mm
- Diameter of countersunk head: 12 mm
- Drill hole depth h1 ≥: 80 mm
- Embedment depth hef ≥: 70 mm
- Screw drive: TORX T30
- German DIBt approval: Z-21.2-589
Characteristic loads:
Building material class A:- Normal weight concrete ≥ C 12/15 acc. to EN 206-1: 1.0 kN
- Pre-cast concrete Panel ≥ B15: 0.25 kN
Building material class B:
- Clay bricks(≥ Mz 12) acc. to DIN 105: 0.4 kN
- Solid lime sandstone (≥ KS 12) acc. to DIN EN 106: 0.4 kN
- Solid masonry of lightweight concrete (V) acc. to DIN 18152: 0.2 kN
Building material class C:
- Vertically perforated clay bricks (Hlz) acc. to DIN 105: *
- Vertical coring reference brick (Hlz) acc. to ÖNORM B 6124: 0.75 kN
- Sand-lime perforated bricks (≥ KSL 6) acc. to DIN EN 106: 0.25 kN
- Lightweight concrete hollow blocks (≥ HbL 2) acc. to DIN 18151: 0.15 kN
Building material class D:
- Lightweight aggregate concrete acc. to TGL: 0.3 kN
*According to approval to be determined throught pull-out testing at the building.
The design loads given are in accordance with the German building code. National safety factors are already incorporated. Please observe the approval.
Find the right anchor lengths: ETICS anchor configurator
ETICS products are only available from system suppliers
ETICS products are only available from system suppliers
Filtr
Selected filters
Označení výrobku | Číslo výrobku | průměr hmoždinky mm | délka mm | kotevní­ mm | zatloukací hmoždinka | materiál | Balení |
---|---|---|---|---|---|---|---|
EJOT SDF-S plus 8UB x 100 | 8786100460 | 8.0 | 100.0 | 70.0 | šroubovací hmoždinka | ocel zušlechtěná, pozinkovaná | 100 |
