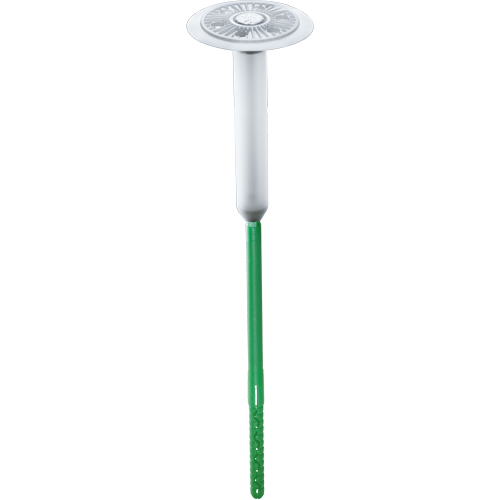

EJOT® TE 60/50

Oblast použití

• Fastening of External Thermal Insulation Systems on problematic substrates
• To combine with EJOT SDF-S plus 8UB

Vlastnosti

• shaft length: 50 mm
• Washer diameter: 60 mm
• Screw drive: TORX T30
• drill hole depth h1 ≥ 80 mm
• Embedment depth h_ef ≥: 70 mm
• Point thermal transmittance λ 0.002 W/K
• European Technical Approval: ETA-04/0064

Technické údaje

Technical data EJOT TE 60/50 and 60/110 in combinaton with EJOT SDF-S plus 8UB

Shaft length EJOT TE 60/50: 50 mm
Shaft length EJOT TE 60/110: 110 mm
Washer diameter: 60 mm
Screw drive: TORX T30
Drill hole depth h₁ ≥ : 80 mm
Embedment depth h_ef ≥ : 70 mm
Point thermal transmission χ TE 60/50: 0.002 W/K
Point thermal transmission χ TE 60/110 with insulation thickness 120-150 mm: 0.000 W/K
Point thermal transmission χ TE 60/110 with insulation thickness 150-240: 0.001 W/K
European Technical Approval ETA-04/0064
